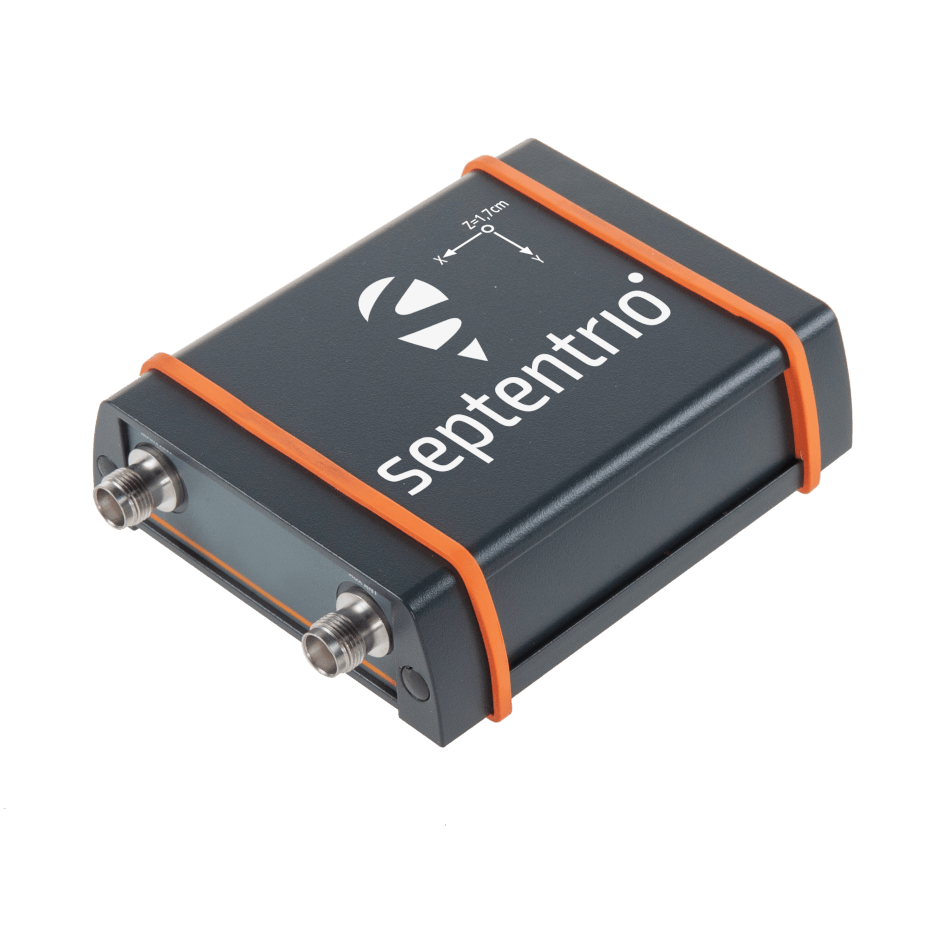

Ruggedized receiver for high-accuracy positioning and orientation

      AsteRx SBi3 Pro GNSS/INS multi-frequency receiver delivers reliable centimeter level positioning together with 3D orientation in challenging environments. Thanks to the built-in inertial sensor, it provides orientation (heading, pitch and roll) as well as dead reckoning, making it a perfect solution for systems that require positioning under any condition. This housed high-performance GNSS/INS system is ideal for rapid integration into machine control or ground robotic applications.



 Key Features

  • Accurate and reliable IMU-enhanced GNSS positioning down to centimeter level

  • Quad-constellation, multi-frequency, all-in-view RTK positioning

  • Single antenna GNSS/INS with heading, pitch and roll

  • Robust and compact IP68 weatherproof housing

  • AIM+ unique interference monitoring and mitigation system + advanced other GNSS+ algorithms

Get to know our integrated GNSS+INS receiver

      Septentrio’s renowned multi-constellation, multi-frequency RTK is further enhanced by a powerful GNSS/INS integration that allows to have accurate heading, pitch and roll using a single antenna for the most efficient and lean integration. The integrated positioning + orientation solution of AsteRx SBi3 Pro streams out into several wired connectors. With clear marking of the inertial reference point together with a sturdy mounting connector, it is an ideal system for those who are looking for an intuitive GNSS/INS, ready for production.

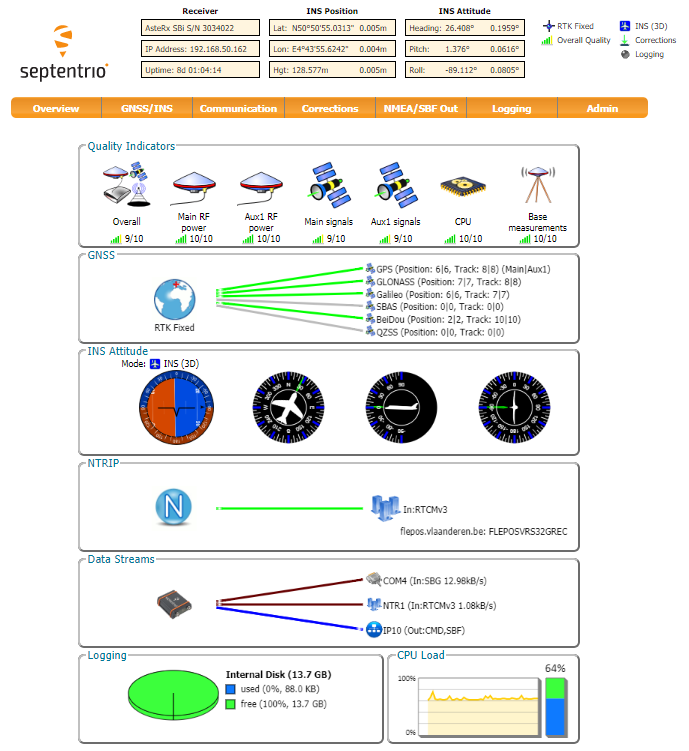

Intuitive web user interface



      This receiver includes an intuitive web user interface for easy operation and monitoring allowing you to control the receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during the job at hand.

Wherever reliable high-precision GNSS positioning is needed:
