AsteRx-i3 D Pro

AsteRx-i3 D Pro

AsteRx-i3 D Pro



Ready-to-use GNSS/INS single-board receiver

      AsteRx-i3 D Pro delivers reliable centimeter level positioning combined with 3D orientation (heading, pitch and roll) in demanding environments. Its onboard inertial sensor provides orientation and positional dead-reckoning, making it ideal for systems that require continuous positioning even during short GNSS outages.

      This product will be available at the end of April 2021.



Key Features

  • Quad-constellation, multi-frequency, all-in-view RTK positioning
  • Reliable and accurate IMU-enhanced GNSS positioning down to the centimeter level
  • Single GNSS antenna with heading, pitch and roll
  • Lightweight, low power and compact
  • AIM+ unique interference monitoring and mitigation system + advanced other GNSS+ algorithms

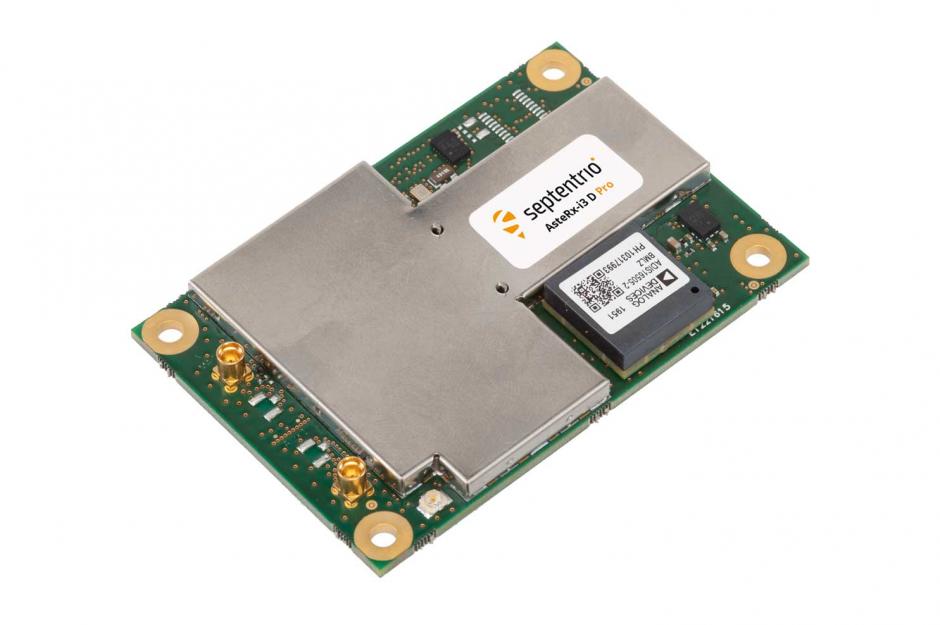

Get to know our GNSS+INS receiver OEM board

      The AsteRx-i3 D Pro is a state-of-the-art GNSS/INS rover receiver designed to provide robust and reliable positioning and 3D attitude for the most challenging industrial applications. Septentrio’s multi-constellation, multi-frequency, accurate and reliable RTK is further enhanced by a powerful GNSS/INS integration that allows to have accurate heading, pitch and roll using a single antenna for the most efficient and lean integration.

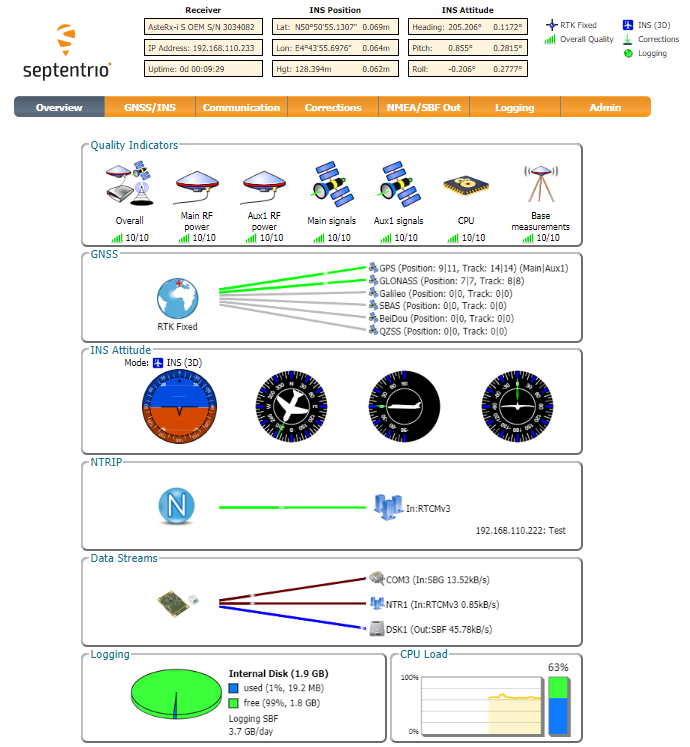

Intuitive web user interface



      This receiver includes an intuitive web user interface for easy operation and monitoring allowing you to control the receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during the job at hand.

Wherever reliable high-precision GNSS positioning is needed:
